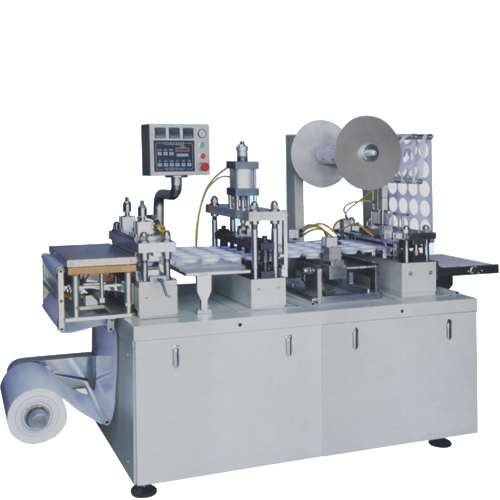

HERO BRAND PAPER CUP PLASTIC LID/COVER FORMING MACHINE

主要特点 Main Characteristics

实现GMP/QS双标准无尘净化生产，提高产品卫生生产，解决交叉污染；

防卷，成型，冲孔，冲裁，出料，收卷六工位同步生产，机械手夹持进给，结构紧凑运行平稳，操作简单；

操作区域与转动机构完全隔离杜绝污染，易于日常清理；

行程可调，模具更换简便，可随意更换板块尺寸，适用于多种规格；

可采用PLC人机界面，无极变频调速，PC电路控制面板；

可根据用户要求设计模具。

The achievement of GMP/QS double standard purification clean production ,I mprove product hygiene and safety, meanwhile, resolve cross contamination;

Roll Film Loading, Forming Hole Punching, Punching, Output, Roll Film reclaiming Six-Station Synchronous Production, Manipulator Feeder, Compact Structure &Stable Performance, Easy Operation;

Operation Area and Transmission Parts are complete isolation to avoid pollution and covenient to clean;

Journey Adjustable, mould replacement is simple, easy to change mould size, suitable for different specifications;

Adopting PLC man Machine interface, Stepleess Frequency Speef Adjustment, PC Circuit Control Board;

Mould can be designed according to customers requirements.

主要功能 Main Functions

PS/PVC/PET 等塑料制品的成型，冲裁冲孔。

Forming and punching for plastic material like PS/PVC/PET etc.

适用对象 Applicable Object

五金托盘，食品托盘，医药托盘PS/PVC/PET等，塑料杯盖的制作。

Hardware tray, food tray, pharmaceutical tray, PS/PVC/PET etc  Plastic Cup Cap

材料 Material

HIPS，PVC,.PET.,PS等材料。

Plastic Material Like HIPS、PVC、PET、PAS ETC

技术参数 Technical Parameters

冲裁频率 Cutting Frequency            8-32次/分（Times/min）

行程范围 Travel Range                50-160mm

最大成型深度 Max Forming Depth      400*160mm

最大成型面积 Max Forming Area      自来水或循环水60升/小时

模具冷却 Mould Cooling              Tap Water or Circulation Water 60L/S

电源总功率 Total Power              4.6KW

耗气量 Air Consumptions            ≥0.3m³/min

气压 Air Pressure                    0.4-0.7Mpa

适用片材 Applicable Material          (0.15-0.5)*400mm

外形尺寸 Overall Dimensions          2700*830*1450mm

重量 Weight(kg)                     800kg
