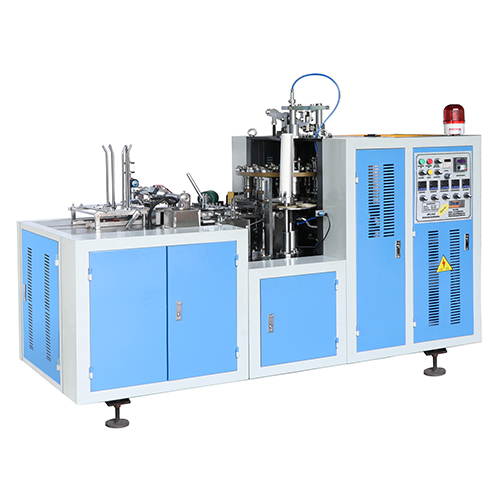

HR-9 SINGLE PLATE PAPER CUP MAKING MACHINE

HR Series New Model Paper Cup Making/Forming Machine, Is The Full Automatic Paper Cup Forming Equipment, Through Multipul Rows Automatic Paper Feeding, Paper Anti-Back Device To Keep Accurate Positioning,Ultrasonic And Elec-Heat Welding,Oil Filling,Manipulator Paper Roll Trasfer,Cup Body Making,Bottom Punching,Bottom Folding,Pre-Heating,Knurling,Edge Curling,Cup Collecting Such Process, To Keep Stable Producing Different Types Paper Cup, Is Totally Technology Developed New Type Paper Cup Making/Forming Equipment.

The Main Features Are As Follows:

1.Machine Speed Increased From 40-50Cups/Mins To 55-60Cups/Mins. By The Speed Increasing, Power Consumption Still Keeps On 4.5Kw.

2.Reduced Machine Demension, More Reasonable And Compact Structure, More Simpler Processing Steps. From The Original 3Turnables To Single Turnable With Cups Collecting Parts, Cup Making And Collecting Are Going To Be More Easily.

3.Bottom Punching Knife Was Placed Under The Mould Bottom, After Bottom Paper Cutted It Will Be Punched Directly To Cups Bottom, Keep Machine Running More Stable By Avoids Bottom Breaking.

4.This Equipment Adopts Light-Controlled Non-Contact Multi-Point Switch, Which Detects Abnormal Operation, Realizes Automatic Fault Alarm And Stops, Protects All Parts Of The Machine From Collision, And Improves The Stability And Life Of The Machine.
